SMPTE timecode (/ˈsɪmpt/ or /ˈsɪmt/) is a set of cooperating standards to label individual frames of video or film with a timecode. The system is defined by the Society of Motion Picture and Television Engineers in the SMPTE 12M specification. SMPTE revised the standard in 2008, turning it into a two-part document: SMPTE 12M-1 and SMPTE 12M-2, including new explanations and clarifications.

Free Smpte Time Code Hour Download

Timecodes are added to film, video or audio material, and have also been adapted to synchronize music and theatrical production. They provide a time reference for editing, synchronization and identification. Timecode is a form of media metadata. The invention of timecode made modern videotape editing possible and led eventually to the creation of non-linear editing systems.

Basic concepts[edit]

GPS500 GPS Time Code Generator. The GPS500 is a precision IRIG-B or SMPTE time code generator. It provides a source of very stable time code, referencing time and date information from atomic clocks in the GPS satellite constellation. The ES-263 is a portable, presettable SMPTE Time Code Generator. The microprocessor-based unit can be preset using the front panel mounted controls (only hours and minutes are presettable as seconds and frames are automatically set to 00:00).

  1. Sep 20, 2016  What Is SMPTE Timecode? SMPTE timecode is a standard for labeling frames of video or film.The standard was developed and defined by the Society of Motion Picture and Television Engineers (hence the name SMPTE) and allows for accurate editing, synchronization, and identification of media.

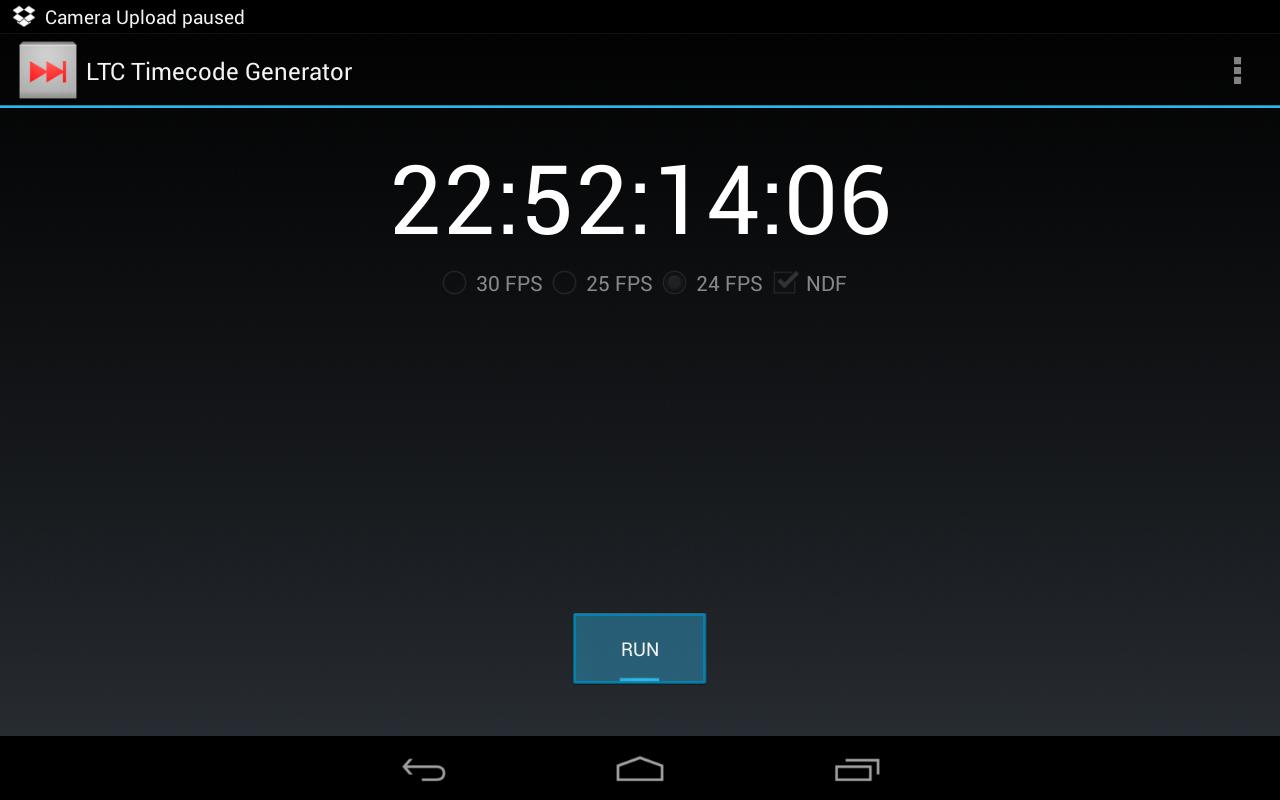

  2. Timecode free download. VOB Fix Fix the Timecodes in a Vob file using the ffmpeg program. Linear (or Longitudinal) Timecode (LTC) is an encoding of SMPTE timecode data in an audio signal, as defined in SMPTE 12M specification. Downloads: 1 This Week. Converts frame numbers and time codes in movie files between different formats.
SMPTE timecode signal (A 1 is expressed by a transition at the midpoint of a period. A 0 is expressed by the absence of such a transition.) compared to the outwardly-similar Manchester code (A 0 is expressed by a high-to-low transition, a 1 by low-to-high transition at the midpoint of a period).

SMPTE timecode is presented in hour:minute:second:frame format and is typically represented in 32 bits using binary coded decimal. There are also drop-frame and color framing flags and three extra binary group flag bits used for defining the use of the user bits. The formats of other varieties of SMPTE timecode are derived from that of the linear timecode. More complex timecodes such as vertical interval timecode can also include extra information in a variety of encodings. Free avast pro antivirus 2015 activation code.

Sub-second timecode time values are expressed in terms of frames. Common supported frame rates include:

  • 24 frame/sec (film, ATSC, 2K, 4K, 6K)
  • 25 frame/sec (PAL (Europe, Uruguay, Argentina, Australia), SECAM, DVB, ATSC)
  • 29.97 (30 ÷ 1.001) frame/sec (NTSC American System (US, Canada, Mexico, Colombia, etc.), ATSC, PAL-M (Brazil))
  • 30 frame/sec (ATSC)

In general, SMPTE timecode frame rate information is implicit, known from the rate of arrival of the timecode from the medium. It may also be specified in other metadata encoded in the medium. The interpretation of several bits, including the color framing and drop frame bits, depends on the underlying data rate. In particular, the drop frame bit is only valid for a nominal frame rate of 30 frame/s.

Discontinuous timecode, and flywheel processing[edit]

Timecodes are generated as a continuous stream of sequential data values. In some applications wall-clock time is used, in others the time encoded is a notional time with more arbitrary reference. After making a series of recordings, or after crude editing, recorded timecodes may consist of discontinuous segments.

Free Smpte Time Code Hour Download Full

In general, it is not possible to know the linear timecode (LTC) of the current frame until the frame has already gone by, by which time it is too late to make an edit. Practical systems watch the ascending sequence of the timecode and infer the time of the current frame from that.

As timecodes in analog systems are prone to bit-errors and drop-outs, most timecode processing devices check for internal consistency in the sequence of timecode values and use simple error correction schemes to correct for short error bursts. Thus, a boundary between discontinuous timecode ranges cannot be determined exactly until several subsequent frames have passed.

I'm in Canada and bought mine from '' and they provided a code in an hour or so through a fully automated system to my email inbox. I was happy with that. Click to expand.Hey I've experienced well in Unlocking since i've unlocked many of my mobiles regularly. From beginning i nearly finish all my attempts and then unlock my mobile. Imei unlock code generator free.

Drop-frame timecode[edit]

Drop-frame timecode originates from a compromise introduced when color NTSC video was invented. The NTSC designers wanted to retain compatibility with existing monochrome televisions. To minimize subcarrier visibility on a monochrome receiver it was necessary to make the color subcarrier an odd multiple of half the line scan frequency; the multiple originally chosen was 495. With a 30 Hz frame rate the line scan frequency is (30 × 525) = 15750 Hz. So the subcarrier frequency would have been 495/2 × 15750 = 3.898125 MHz. This was the subcarrier frequency originally chosen, but tests showed that on some monochrome receivers an interference pattern caused by the beat between the color subcarrier and the 4.5 MHz sound intercarrier could be seen. The visibility of this pattern could be greatly reduced by lowering the subcarrier frequency multiple to 455 (thus increasing the beat frequency from approx 600 kHz to approx 920 kHz) and by making the beat frequency also equal to an odd multiple of half the line scan frequency. This latter change could have been achieved by raising the sound intercarrier by 0.1% to 4.5045 MHz, but the designers, concerned that this might cause problems with some existing receivers, decided instead to reduce the color subcarrier frequency, and thus both the line scan frequency and the frame rate, by 0.1% instead. Thus the NTSC color subcarrier ended up as 3.57954545 MHz (exactly 315/88 MHz), the line scan frequency as 15734.27 Hz (exactly 9/572 MHz) and the frame rate 29.97 Hz (exactly 30/1.001 Hz).[1]

The altered frame rate meant that an 'hour of timecode' at a nominal frame rate of 30 frame/s, when played back at 29.97 frame/s was longer than an hour of wall-clock time by 3.6 seconds, leading to an error of almost a minute and a half over a day.

To correct this, drop-frame SMPTE timecode was invented. In spite of what the name implies, no video frames are dropped or skipped when using drop-frame timecode. Rather, some of the timecodes are dropped. In order to make an hour of timecode match an hour on the clock, drop-frame timecode skips frame numbers 0 and 1 of the first second of every minute, except when the number of minutes is divisible by ten.[a] This causes timecode to skip 18 frames each ten minutes (18,000 frames @ 30 frame/s) and almost perfectly compensates for the difference in rate.[b]

For example, the sequence when frame counts are dropped:


For each tenth minute


While non-drop timecode is displayed with colons separating the digit pairs—'HH:MM:SS:FF'—drop-frame is usually represented with a semicolon (;) or period (.) as the divider between all the digit pairs—'HH;MM;SS;FF', 'HH.MM.SS.FF'—or just between the seconds and frames—'HH:MM:SS;FF' or 'HH:MM:SS.FF'.[c] Drop-frame timecode is typically abbreviated as DF and non-drop as NDF.

Free Smpte Time Code Hour Download

Color framing and timecode[edit]

A color framing bit is often used to indicate field 1 of the color frame, so that editing equipment can make sure to edit only on appropriate field boundaries in order to prevent picture corruption.

Studio operations and master clocks[edit]

In television studio operations, longitudinal timecode is generated by the studio master sync generator, and distributed from a central point. Central sync generators usually derive their timing from an atomic clock, using either network time or GPS. Studios usually maintain two or three clocks, and automatically switch over if one fails.

A recent development is to mount small GPS-synchronized SMPTE timecode generators on each camera, which eliminates the distribution network for portable set-ups and shooting on location.[citation needed]

Longitudinal SMPTE timecode is widely used to synchronise music. A frame rate of 30 frame/s is often used for audio in America, Japan, and other countries which rely on a 60 Hz mains frequency and use the NTSC television standard. The EBU (European Broadcasting Union) standard frame rate of 25 frame/s is used throughout Europe, Australia and wherever the mains frequency is 50 Hz, and the PAL or SECAM television standards are used.[2]

SMPTE timecode media[edit]

Smpte Time Code Reader

  1. Linear timecode, a.k.a. 'longitudinal timecode' and 'LTC': suitable to be recorded on an audio channel, or by audio wires. This is how it is distributed within a studio to synchronize recorders and cameras. To read LTC, the recording must be moving, meaning that LTC is useless when the recording is stationary or nearly stationary. This shortcoming led to the development of VITC.
  2. Vertical interval timecode, a.k.a. VITC (pronounced 'vit-see'): recorded directly into the VBI (vertical blanking interval) of the video signal on each frame of video. The advantage of VITC is that, since it is a part of the playback video, it can be read when the tape is stationary.
  3. CTL timecode (control track longitudinal): SMPTE timecode embedded in the control track of a video tape.
  4. Visible time code, a.k.a. burnt-in timecode and BITC (pronounced 'bit-see') - the numbers are burnt into the video image so that humans can easily read the time code. Videotapes that are duplicated with these time code numbers 'burnt-in' to the video are known as window dubs.
  5. Film labels, such as Keykode.


Timecode was developed in 1967 by EECO,[3] an electronics company that developed video recorders, and later video production systems. EECO assigned its intellectual property to permit public use.

See also[edit]


  1. ^Because editors making cuts must be aware of the difference in color subcarrier phase between even and odd frames, it is helpful to skip pairs of frame numbers.
  2. ^Drop-frame timecode drops 18 of 18,000 frame numbers, equivalent to 1/1000, achieving 30 × 0.999 = 29.97 frame/s. This is very slightly slower than the true NTSC frame rate of 30/1.001 = 29.97002997 frame/s. The difference is one additional NTSC frame per 1,000,000 timecode frames, a residual timing error of 1.0 ppm or roughly 2.6 frames (86.4 milliseconds) per day which is considered negligible.
  3. ^The period is usually used on VTRs and other devices that don't have the ability to display a semicolon.


  1. ^'Color Television Standards - Selected papers and records of the NTSC' edited by Donald Fink, McGraw Hill 1955
  2. ^
  3. ^'Video Editing'. Archived from the original on 2018-07-15.
  • John Ratcliff (1999). Timecode: A user's guide, second edition (Third ed.). Focal Press. ISBN978-0-240-51539-7.
  • Charles Poynton (1996). A Technical Introduction to Digital Video. John Wiley & Sons. ISBN0-471-12253-X.

External links[edit]

  • Technical Introduction to Timecode by Charles Poynton
  • Peter Utz. 'SMPTE Time Code Explained'. Archived from the original on 2009-02-10.
  • Conversion between SMPTE hh:mm:ss:ff Time Code and Frames with c source code by Brooks Harris
